Different Types of EV Charge Sockets

When it comes to electric vehicles (EVs), one of the most frequently asked questions is about charging. If you’re new to the world of electric cars or just starting to think about integrating EVs into your fleet, you’ll need to know about the various types of EV charge sockets available. The charging infrastructure can be confusing, especially with different standards for different regions and vehicle models. But don't worry—I'm here to break it down for you, so you can confidently navigate the world of EV charging.

What Are EV Charge Sockets?

EV charge sockets are the physical ports or connectors that allow you to plug your electric vehicle into a charging station. Think of it as the “charging point” for your car, where the power flows into your battery. Just like you wouldn’t use the wrong adapter for your phone, using the right type of charge socket is crucial for ensuring your EV charges safely and efficiently.

Now, there are several types of EV charge sockets, and they vary depending on the region, the car make, and the power level required. Let’s take a closer look at the most common types.

Types of EV Charge Sockets

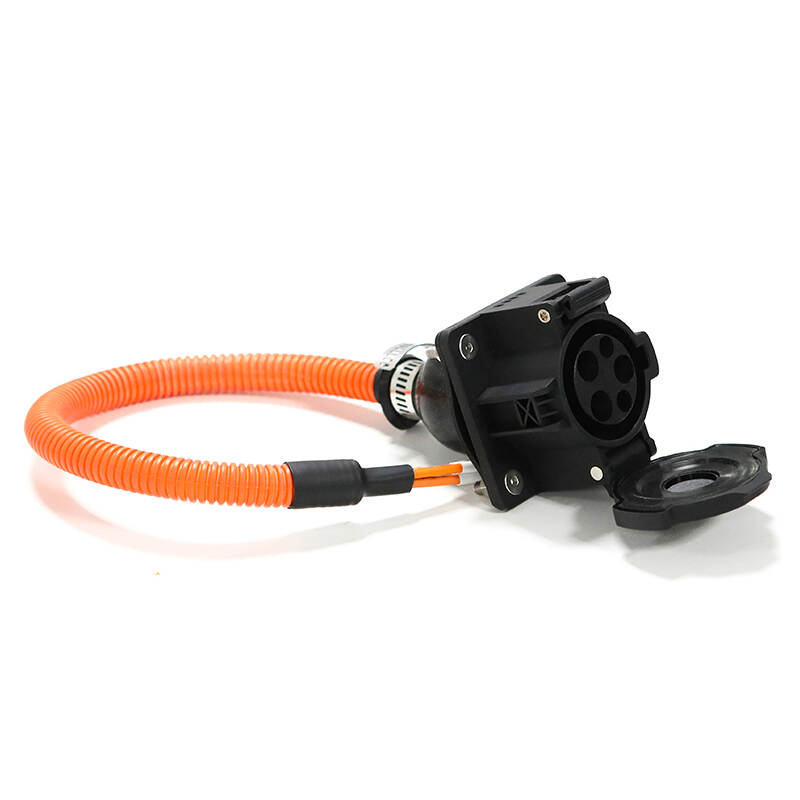

1. Type 1 (J1772) - Common in North America and Japan

Type 1 sockets, also known as J1772 connectors, are primarily used in North America and Japan. If you’ve ever seen a plug with five pins, that's likely a Type 1 connector. It’s one of the earliest charging standards and is widely found in older EV models, such as early Nissan Leafs or Chevy Volts.

Features of Type 1:

• Five-pin design: It includes two pins for power, one for ground, and two for communication.
• Single-phase: This means it can deliver up to 7.4 kW of power, which is sufficient for home charging.

In my experience, I’ve seen Type 1 most frequently in older models or in some fleets where early adoption of electric vehicles took place. If you're in North America or Japan, and you’re driving a pre-2015 model EV, chances are you'll have a Type 1 socket.

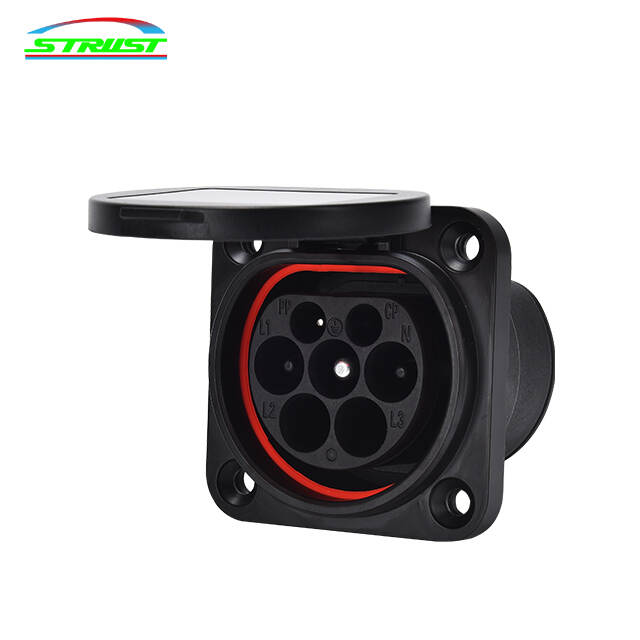

2. Type 2 (Mennekes) - Common in Europe and Newer EVs

The Type 2 socket, also known as Mennekes, is the most common charging standard in Europe. It’s become the go-to connector for many modern electric cars, including models like the Tesla Model 3 and BMW i3.

Features of Type 2:

• Seven pins: This setup allows for three-phase charging, which can deliver significantly more power than the Type 1.
• Up to 43 kW of power: With three-phase charging, Type 2 can provide up to 43 kW of power, making it faster for long-distance trips.
• Compatibility: This connector is becoming the standard in Europe and is often found in public charging stations.

I remember when I first drove a European EV and saw the Type 2 socket. Initially, I thought it looked like a slightly more advanced version of a Type 1, but the extra pins and the ability to charge at higher speeds really stood out.

3. Combined Charging System (CCS) - A High-Speed Standard

CCS (Combined Charging System) is an upgrade to the Type 2 socket, offering fast-charging capabilities. It’s a real game-changer for anyone looking to quickly recharge their EV on long trips. CCS adds two additional DC (Direct Current) pins beneath the Type 2 AC (Alternating Current) pins, allowing for higher power delivery.

Features of CCS:

• Fast DC charging: CCS can deliver up to 350 kW of charging power, making it the fastest charging option available.
• Compatibility: This system is used across a wide range of European, North American, and some Asian EV models.
• Widely available at fast-charging stations: As of now, CCS chargers are the most common in public fast-charging stations, particularly in Europe and North America.

I’ve personally experienced the convenience of CCS at a highway rest stop on a long road trip. I plugged in my car, grabbed a coffee, and by the time I was done, my battery was nearly 80% full—now that's what I call fast charging!

4. Tesla Supercharger - Tesla's Exclusive Fast-Charging Network

If you drive a Tesla, you’ve probably used a Tesla Supercharger. Tesla has its own proprietary charging system, designed specifically for its vehicles. While Tesla cars are generally equipped with a Type 2 socket (in Europe) or J1772 (in the U.S.), they also use their exclusive connectors for the Supercharger network.

Features of Tesla Supercharger:

• Exclusive to Tesla: The connector is proprietary and works only with Tesla vehicles.
• High-speed charging: Tesla Superchargers can provide up to 250 kW of charging power, allowing for rapid recharges in under 30 minutes.
• Network availability: Tesla has an extensive network of Supercharger stations, making long-distance travel with a Tesla convenient and relatively easy.

As a Tesla driver, I can vouch for the convenience of the Supercharger network. There’s something uniquely satisfying about seeing a “Supercharger” station on your route, knowing that you’ll be back on the road quickly. Tesla’s vision of an integrated charging experience is one of the reasons I’m a big fan.

5. CHAdeMO - Japan’s Fast-Charging Standard

CHAdeMO is a fast-charging standard developed in Japan, and it’s still popular among Japanese automakers, particularly with Nissan (think Leaf) and Mitsubishi. Though its use is becoming less common with newer models favoring CCS, CHAdeMO is still a significant player in the EV world.

Features of CHAdeMO:

• DC fast charging: It offers up to 62.5 kW of charging power.
• Vehicle compatibility: Mainly used by Japanese automakers and older EVs.
• Charging speed: Though slower than CCS, it’s still fast enough for those on the go.

In my own experience, CHAdeMO has been a lifesaver when traveling in places like Japan. The network is pretty solid, and it’s nice to know there’s a reliable fast-charging option, even if CCS is slowly overtaking it in Europe and North America.

Choosing the Right Charging Socket for Your EV

Choosing the right charging socket really depends on your location, the make of your vehicle, and the charging speed you’re looking for. Here are some practical tips:

• For regular home charging: Type 1 (J1772) and Type 2 are your go-to options. Type 2 is more common in Europe and newer cars.
• For fast charging on long trips: If you’re in North America or Europe, look for stations with CCS connectors for the fastest charge. Tesla drivers can benefit from the Supercharger network.
• In Japan or with older EVs: CHAdeMO still holds its ground, so if you're traveling in Japan, it might be the option to look out for.

Conclusion

As the adoption of electric vehicles continues to grow, the charging infrastructure will continue to evolve. More universal charging standards, faster charging speeds, and better integration between car manufacturers and charging networks are all on the horizon. For now, understanding the different types of charge sockets is a step in the right direction for anyone involved in the EV industry.

Whether you’re an EV owner, a fleet manager, or just considering your options for the future, it’s important to keep an eye on these changes. Personally, I’m excited about the direction things are heading—more stations, more choices, and faster charging options will only make EVs even more convenient and practical.

I hope this article helps you understand electric vehicle charging outlets. If you have any specific experiences or tips to share about charging, I'd love to hear about them!
